CTM CX-16S 16000 BTU Marine Split A/C Condenser 115V

Overview CTM CX-16S 16000 BTU Marine Split A/C Condenser 115V

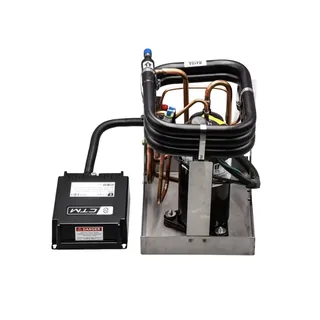

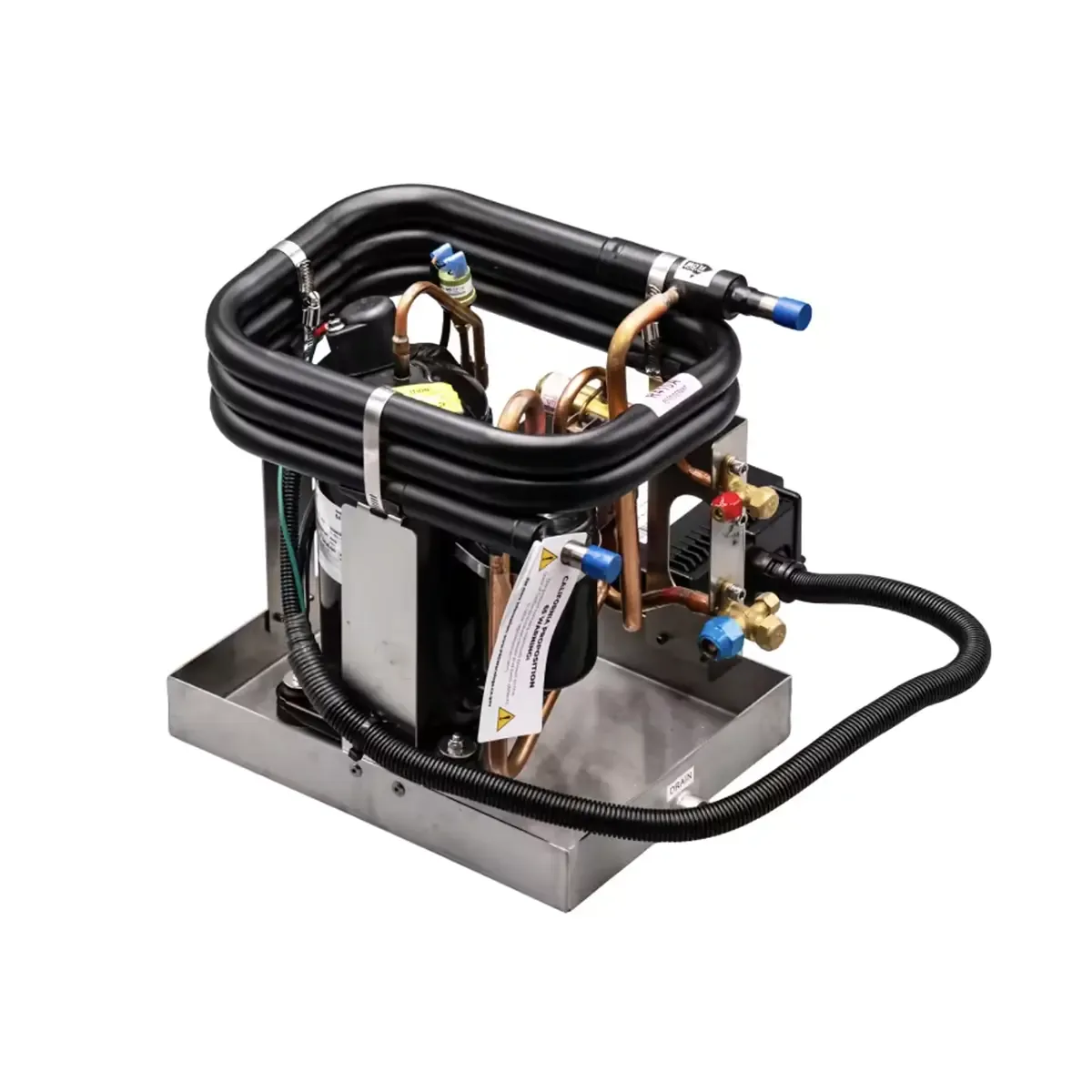

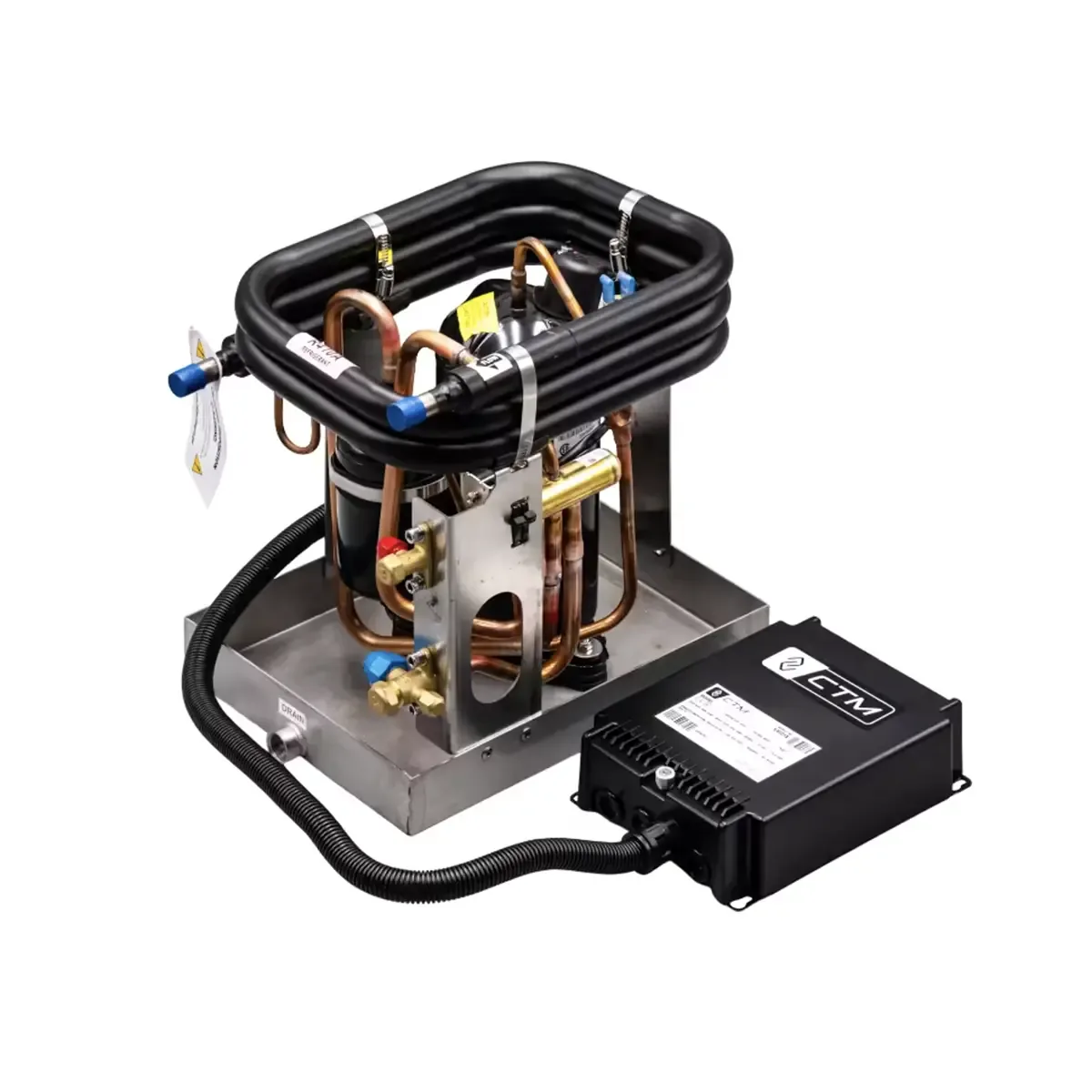

CTM CX-16S 16000 BTU Marine Split A/C Condenser 115V is a marine split condensing unit designed for 100-120V, 50/60Hz operation and R410A refrigerant, with the added benefit of soft start capability. This 16,000 BTU model is built for buyers who need a higher-capacity split-system marine A/C condenser with corrosion-resistant construction, including titanium circulating coils, stainless steel bolts, and a stainless steel structural pan.

The CX-16S is also presented as a replacement option for major marine A/C brands including Dometic, Marine Air, and Cruisair. The product information further states compatibility with Dometic, Cruisair, Marine Air, and Micro Air controls, thermostats, and cables, which may help simplify retrofit planning where compatible control components are already onboard.

Key Features of CTM CX-16S 16000 BTU Marine Split A/C Condenser 115V

- 16,000 BTU capacity for marine split A/C applications that require higher cooling output.
- 100-120V, 50-60Hz operation for boats using 115V-class electrical systems.
- Split-system condensing unit design stated in the product data.
- Soft start board uses a 4-part self-optimizing ramp sequence to reduce startup current demand.
- Soft start is described as capable of reducing startup current by 65-75% compared with locked-rotor amperage.
- R410A refrigerant is specified for this exact model.
- Titanium circulating coils are identified for long-lasting use in marine environments.
- Stainless steel bolts and structural pan help support corrosion-resistant condenser construction.
- Compatible with Dometic, Cruisair, Marine Air, and Micro Air controls, thermostats, and cables.
- Connection sizes are listed at 1/4 in discharge and 1/2 in suction for installation reference.

Applications

This model is suited to buyers looking for a 16,000 BTU marine split A/C condenser for a new installation or a replacement project on a 115V electrical system. It can be a practical option where a split-system configuration is required and the buyer wants compatibility with several established marine A/C control platforms.

The soft start feature also makes this model more relevant for installations where startup power demand needs to be managed more carefully, such as boats running on a generator, inverter, or limited utility power. Its listed refrigerant, connection sizes, and higher suggested water flow also help buyers confirm whether it fits the intended system layout.

Why Choose This Marine Air Conditioner

The CTM CX-16S gives buyers a clearly differentiated 16,000 BTU split-system condenser option by combining the CX-16 platform with soft start capability. That is the main distinction of this variant when compared with the standard CX-16. Its buying value comes from the combination of confirmed split condenser design, R410A refrigerant, corrosion-resistant marine construction, compatibility with several widely used marine A/C control systems, and the added startup-management benefit described for the soft start board. For buyers comparing exact specifications, this model also provides clear figures including 60 A locked rotor amps, 500 GPH suggested water flow, 42 lbs net weight, and a 2-year warranty.
