CTM CX-24H 24000 BTU Marine Split A/C Condenser 230V

Overview CTM CX-24H 24000 BTU Marine Split A/C Condenser 230V

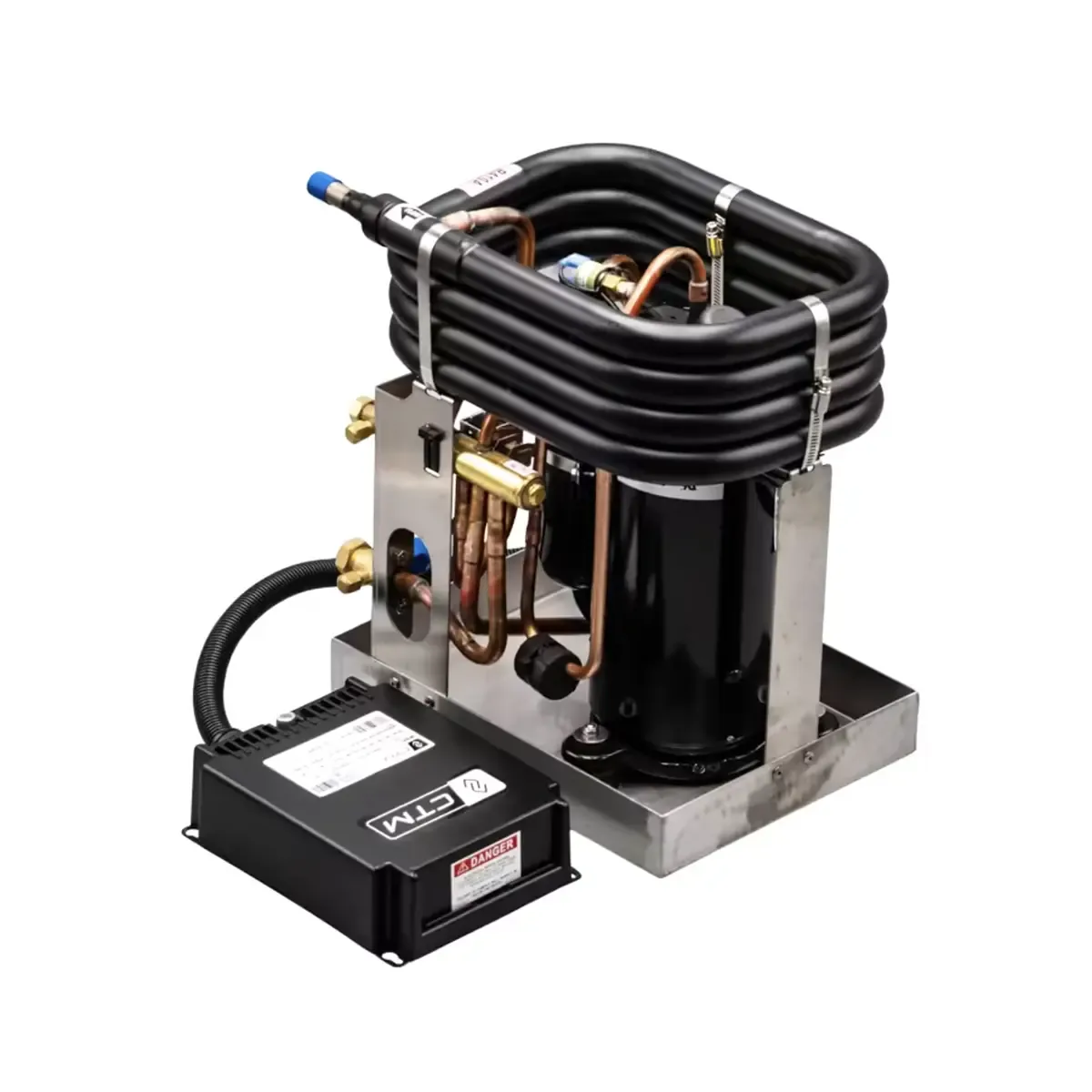

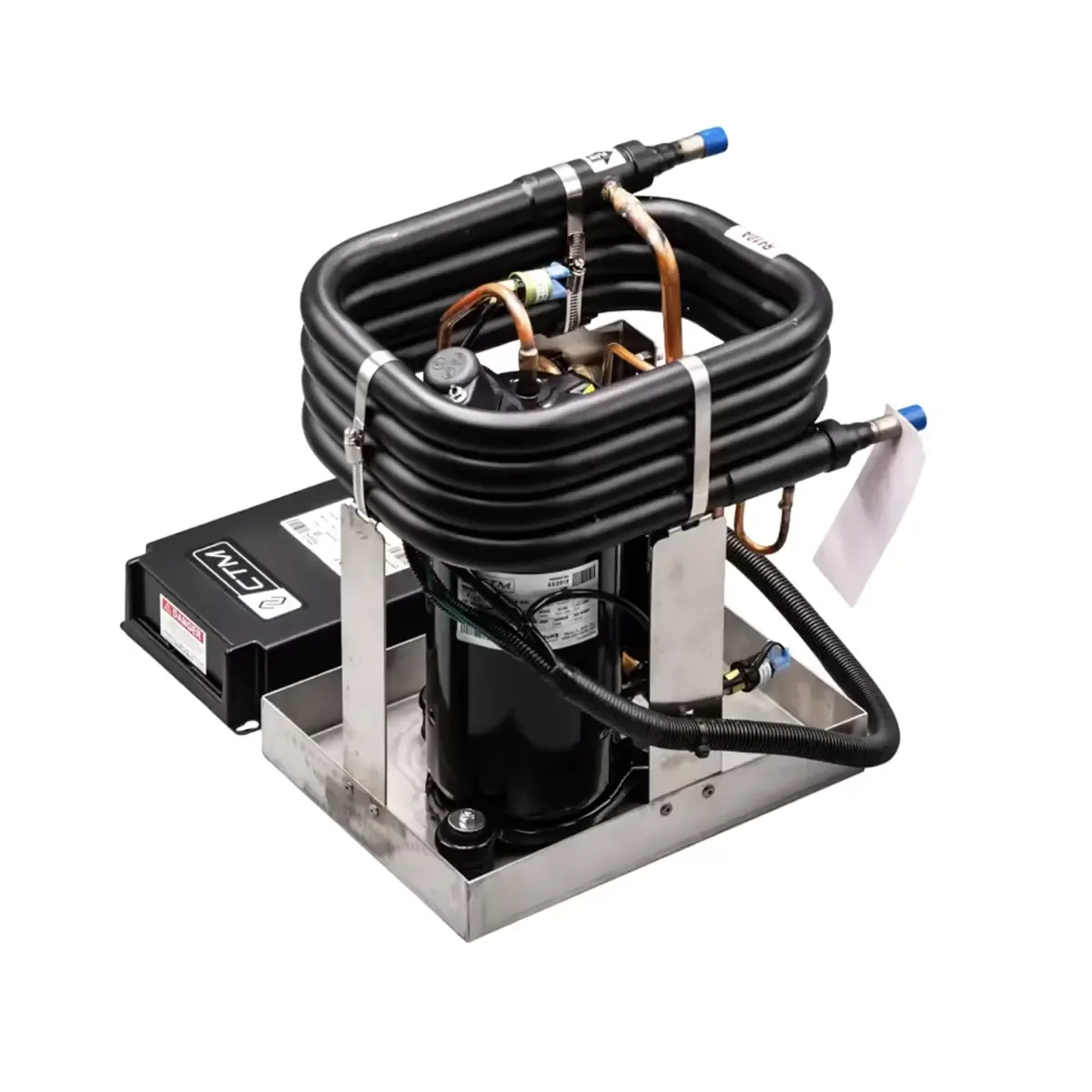

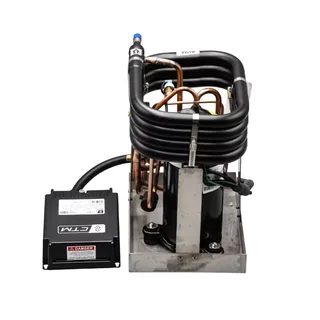

CTM CX-24H 24000 BTU Marine Split A/C Condenser 230V is a marine split condensing unit designed for 208-240V, 50/60Hz operation and R410A refrigerant. This 24,000 BTU model is built for buyers who need higher-capacity split-system marine air conditioning performance on a 230V setup, with corrosion-resistant construction that includes titanium circulating coils, stainless steel bolts, and a stainless steel structural pan.

The CX-24H is also presented as a replacement option for major marine A/C brands including Dometic, Marine Air, and Cruisair. The product information further states compatibility with Dometic, Cruisair, Marine Air, and Micro Air controls, thermostats, and cables, which may help simplify retrofit planning where compatible control components are already onboard.

Key Features of CTM CX-24H 24000 BTU Marine Split A/C Condenser 230V

- 24,000 BTU capacity for marine split A/C applications that require higher cooling output.
- 208-240V, 50-60Hz operation for boats using higher-voltage onboard electrical systems.
- Split-system condensing unit design stated in the product data.
- R410A refrigerant is specified for this exact model.
- Titanium circulating coils are identified for long-lasting use in marine environments.
- Stainless steel bolts and structural pan help support corrosion-resistant condenser construction.
- Compatible with Dometic, Cruisair, Marine Air, and Micro Air controls, thermostats, and cables.
- 50 A locked rotor amps and a 25 A / 16 A fuse range provide clear electrical reference points for this model.
- Connection sizes are listed at 3/8 in discharge and 5/8 in suction for installation reference.
- Backed by a 2-year warranty.

Applications

This model is suited to buyers looking for a 24,000 BTU marine split A/C condenser for a new installation or a replacement project on a 230V electrical system. It can be a practical option where a split-system configuration is required and the buyer wants compatibility with several established marine A/C control platforms.

Because the product information positions it as a drop-in replacement for several major brands, the CX-24H may also be useful in retrofit work where matching an existing split A/C setup is important. Its larger refrigerant connection sizes, 500 GPH suggested water flow, and higher-capacity output help distinguish it from smaller CX-series models.

Why Choose This Marine Air Conditioner

The CTM CX-24H gives buyers a clearly defined 24,000 BTU split-system condenser option for 230V installations, separating it from lower-capacity CX-series units and from the self-contained CT-series models. Its buying value comes from the combination of confirmed split condenser design, R410A refrigerant, corrosion-resistant marine construction, and compatibility with several widely used marine A/C control systems. For buyers comparing exact specifications, this model also provides clear figures including 7.6 A / 9.0 A current consumption, 50 A locked rotor amps, 500 GPH suggested water flow, 65 lbs net weight, and a 2-year warranty.
