Webasto FCF Platinum 25000 BTU Marine Air Conditioner 230V

Overview Webasto FCF Platinum 25000 BTU Marine Air Conditioner 230V

Webasto FCF Platinum 25000 BTU Marine Air Conditioner 230V is a 25,000 BTU marine climate control unit built for 230V, 50/60Hz operation with reverse cycle heating and standard digital control components. As part of the latest FCF Platinum series, this model is presented with an improved design and a higher BTU/h rating across a variety of ambient scenarios. The included digital display, controller, and cable help make retrofit planning more straightforward for buyers replacing existing marine A/C equipment.

This model uses R410A refrigerant and features a long, slim footprint intended to support easier replacement installations. It is built with a marine-grade stainless steel frame and a proprietary balanced compressor, and it comes with two high-velocity 360° rotatable blowers plus two 5-inch ducting collars. For installations replacing certain Dometic units, the supplied notes highlight ducting, condenser connection, and controller differences that should be reviewed before fitting.

Key Features of Webasto FCF Platinum 25000 BTU Marine Air Conditioner 230V

- 25,000 BTU/h cooling capacity with 25,000 BTU/h heating capacity.
- 230V operation with 50/60Hz compatibility.
- Rated current of 6.8 / 8.0A and compressor LRA of 52A.
- Reverse cycle heating supports both cooling and heating use.

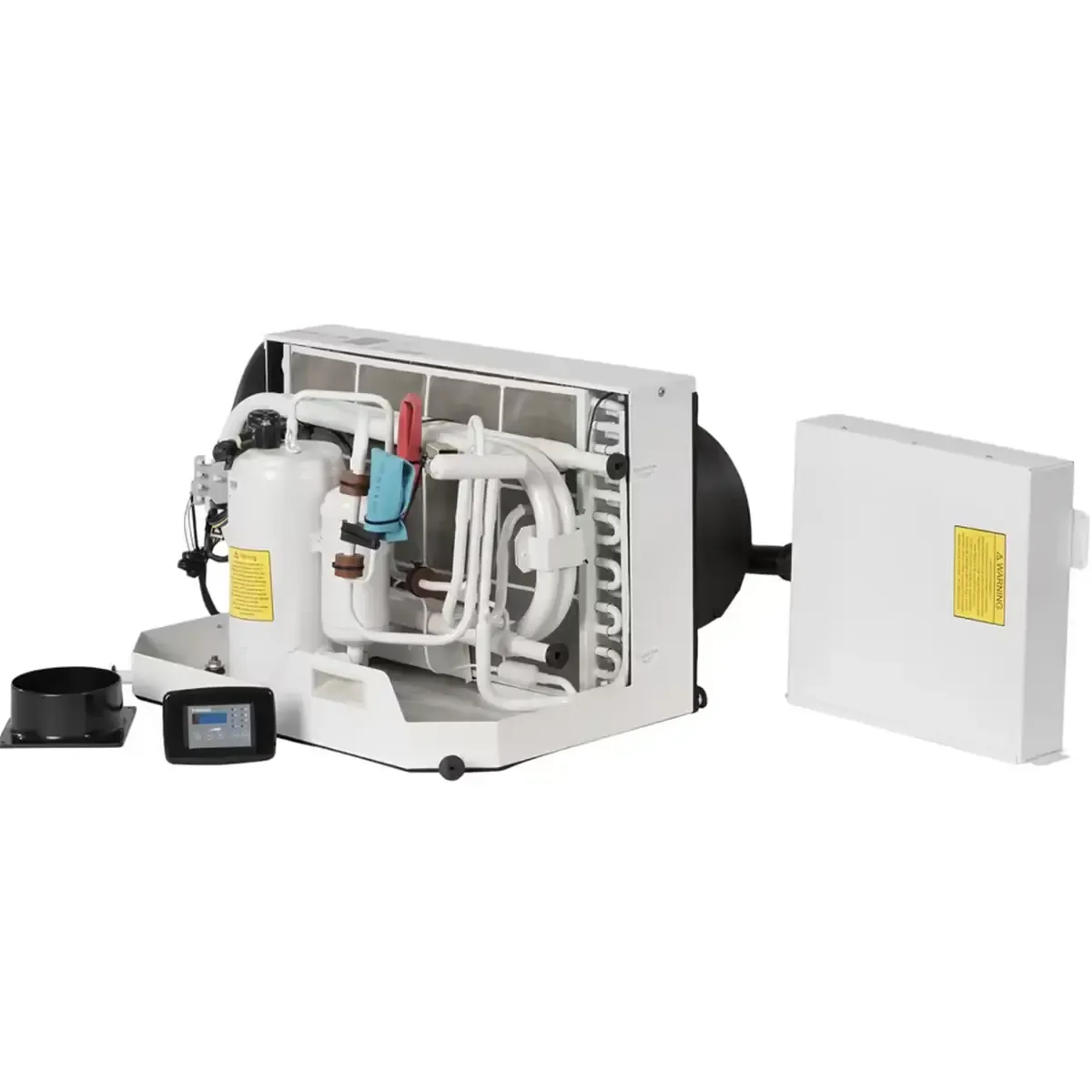

- Digital display, controller, and cable come standard.
- Long and slim footprint is designed to simplify replacement of existing units.
- Marine-grade stainless steel frame supports durability in marine conditions.

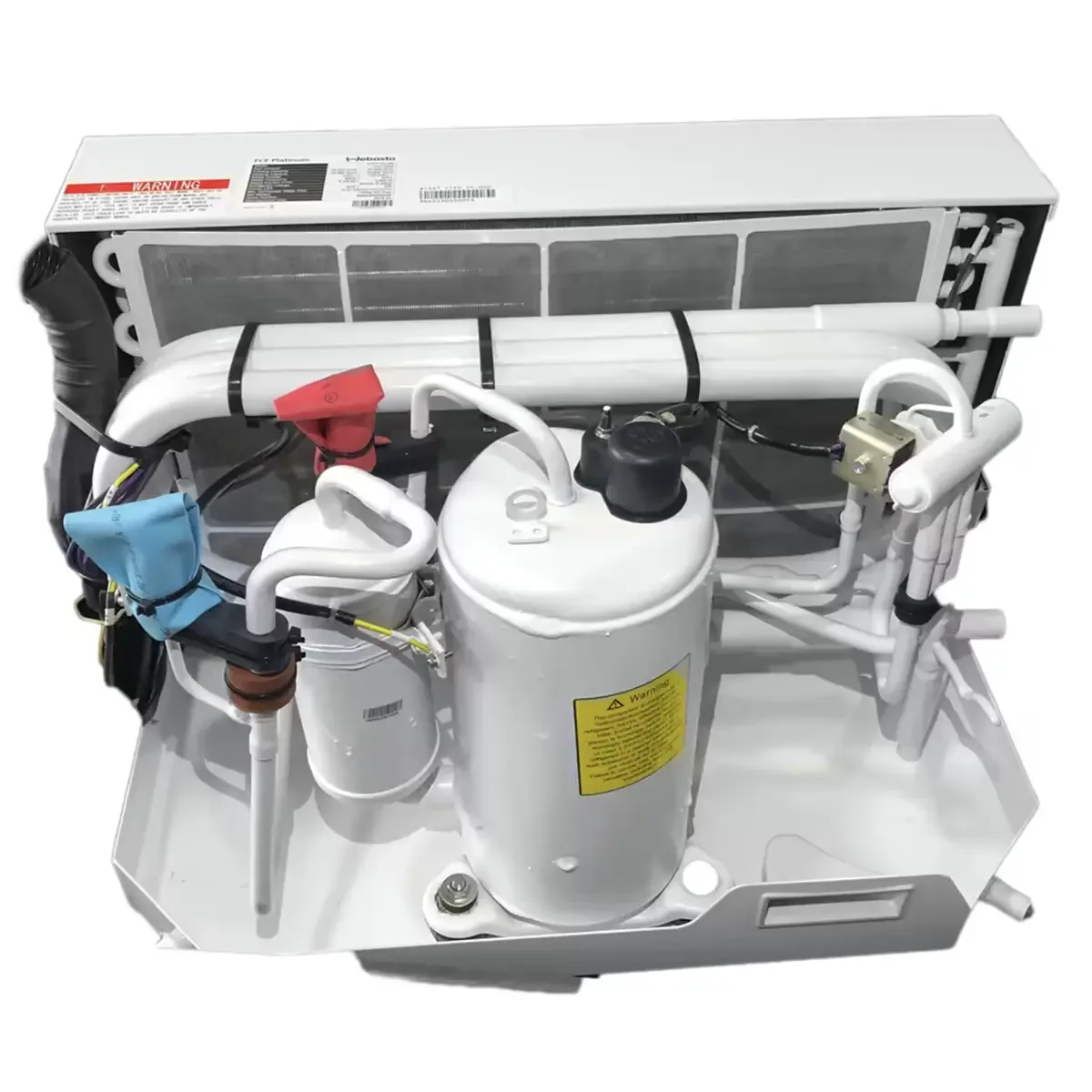

- Proprietary compressor is described as well balanced and quieter than earlier designs.

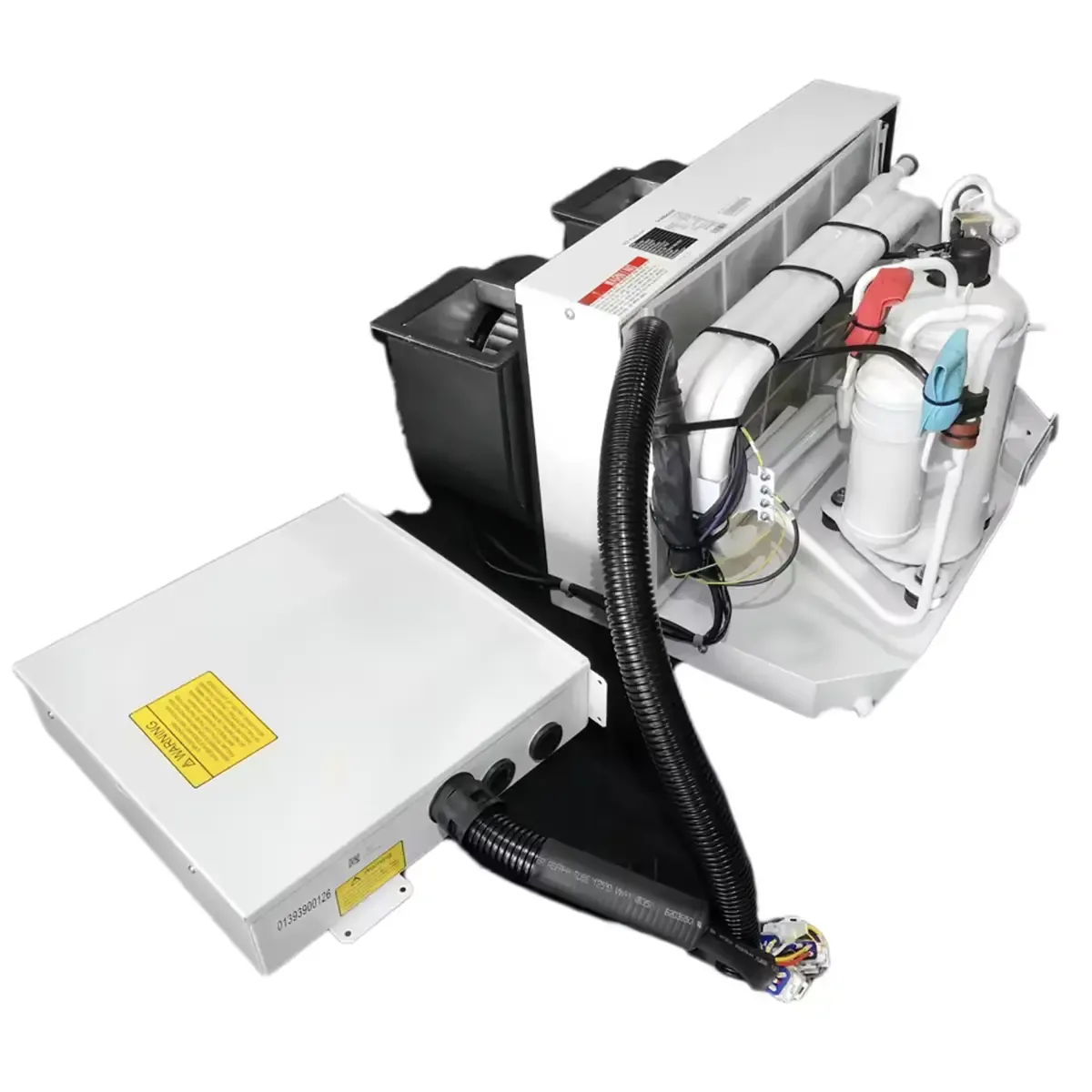

- Two high-velocity 360° rotatable blowers support broader airflow distribution.
- Uses R410A refrigerant with a refrigerant charge of 2.09 lb.

Applications

This model is suited to boats that require a 230V marine air conditioner with 25,000 BTU cooling and reverse cycle heating. It is especially relevant for retrofit projects where a replacement-oriented footprint, included digital controls, and dual blower configuration support installation planning. Buyers replacing an existing Dometic unit should review the noted ducting, condenser connection, and controller differences before installation.

Why Choose This Marine Air Conditioner

The FCF Platinum 25000 230V gives buyers a clearly specified high-capacity marine A/C option with matched cooling and heating capacity, defined electrical requirements, and standard control hardware. Its dual blower setup, marine-grade stainless steel frame, and replacement-focused layout make it practical for larger retrofit applications where airflow coverage and installation detail matter. The documented technical data and 2-year warranty add useful buying clarity without relying on unsupported claims.
